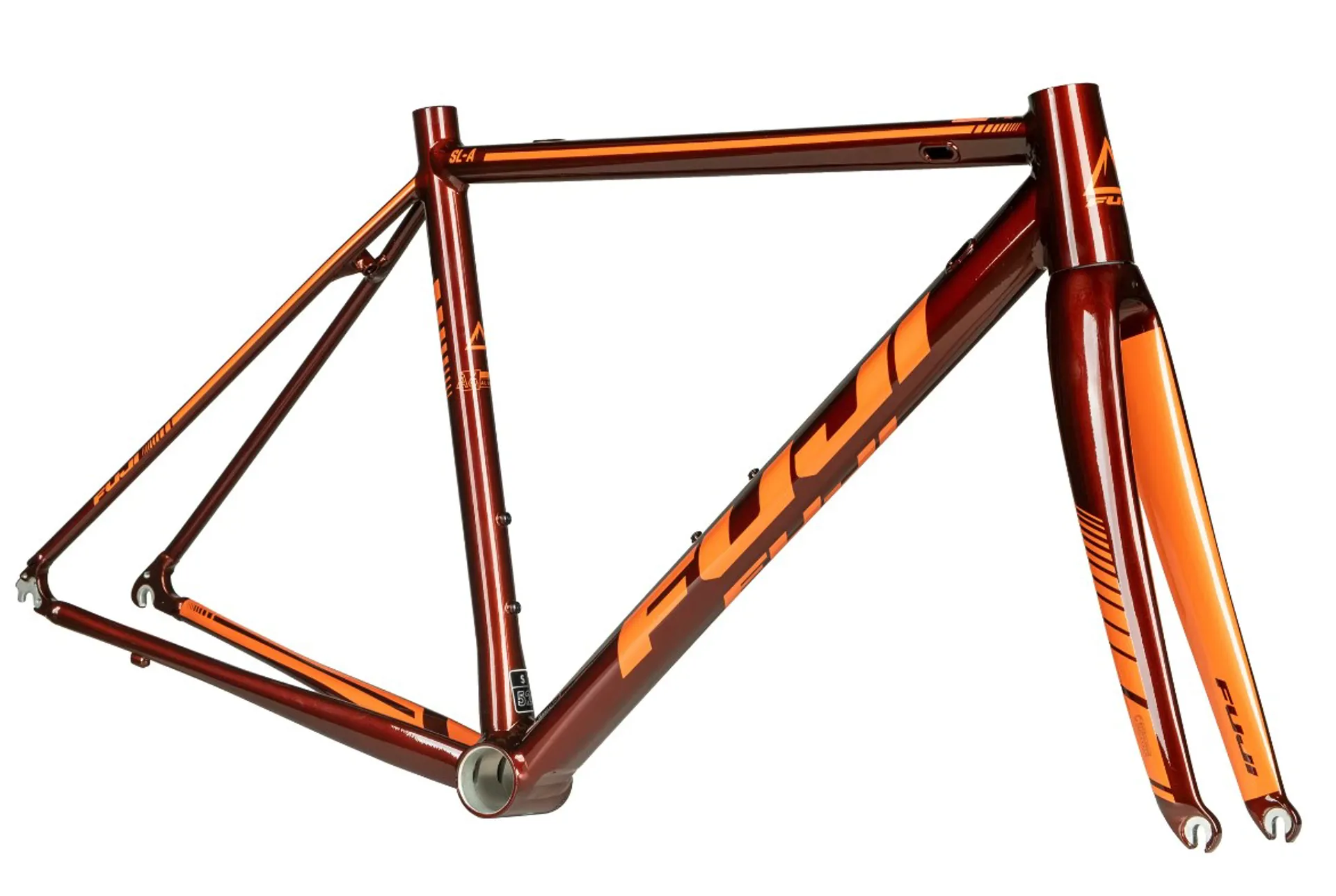

Fuji SL-A Ltd Burnt Red Orange Frameset

Brand:Fuji

Code:172066600

The Fuji SL-A was designed with the goal of creating one of the lightest aluminum race bikes on the market. With a frame weight of under 1100g, that goal is achieved! Svelte as it is, the SL-A doesn't sacrifice strength or stiffness to be featherweight.
Technical Information
  • Frame: A6-SL super-butted 6066 aluminum, integrated and tapered headtube
  • Fork: C10 carbon monocoque fork with tapered carbon steerer
  • Headset: IS42-28mm / IS52-40mm
  • Frame-Bottom Bracket Interface: PF30 (68mm shell width)
  • Seat Tube Diameter: 27.2mm
  • Rear Droput: 130mm quick release
  • Front Droput: 100mm quick release
  • Brake Interface: Road Caliper, not disc brake compatible.
  • Weight: 3 lbs. 12 oz. 54cm size including uncut fork
  • Max tire clearance: 28c
  • Front derailleur clamp size: 31.8 (not included)
Sizing Information

SizeXSSMLXLXXL
Bike Size49cm52cm54cm56cm58cm61cm
Seat Tube Center To Top450480500520540570
Seat Tube Effective490520540560580610
Top Tube Effective515530545560580600
Head Tube Length100120140160190200
Seat Tube Angle74.573.7573.5737373
Headtube Angle71.57273737373
Chainstay Length405405405405405405
Wheelbase97898797898910091029
Bottom Bracket Drop707068686666
Fork Offset525243434343
Trail58.355.158.458.458.458.4
Stack499520543562579599
Reach377379384388403417
Standover721745768786807834
Stem9090100100120120
Handlebar Width400400420420440440
Crank170170172.5172.5175175
Wheel Size700700700700700700
Seat Post Diameter27.227.227.227.227.227.2
